7 Watt Audio Power Amplifier Circuit Schematic

Small but powerful multipurpose amplifier

This small amplifier is constructed around the TDA2003 IC, capable of delivering 4Wrms at 4ohms. The TDA 2003 has improved performance with the same pin configuration as the TDA 2002. The additional features of TDA 2002, very low number of external components, ease of assembly, space and cost saving, are maintained. The device provides a high output current capability (up to 3.5A) very low harmonic
and cross-over distortion. Completely safe operation is guaranteed due to protection against DC and AC short circuit between all pins and ground, thermal over-range, load dump voltage surge up to 40V and fortuitous open ground. A conventional direct current can be connected as supply.

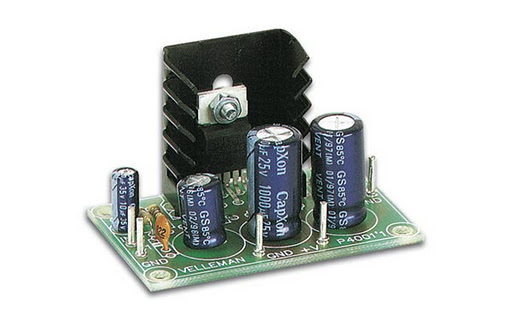

Circuit's picture:

Front View of 7 Watt Audio Power Amplifier

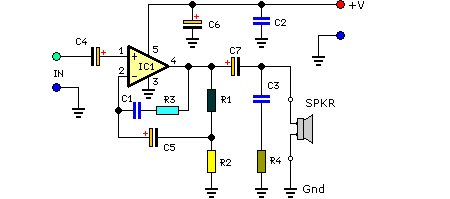

Circuit diagram:

7 Watt Audio Power Amplifier Circuit Diagram

Parts:

R1 = 470R
R2 = 47R
R3 = 100R
R4 = 1R
C1 = 1822pF
C2 = 100nF-63V
C3 = 100nF-63v
C4 = 10uF-25V
C5 = 470uF-25V
C6 = 1000uF-35v
C7 = 1000uF-35V
IC1 = TDA2003

Specifications:

Music power output: 7W / 4ohm
RMS output: 3.5W / 4ohm or 2W / 8ohm
Total harmonic distortion: 0.05% (1W / 1kHz)
Frequency response: 20Hz to 20kHz (-3dB)
Signal/noise ratio: 86dB (A weighted)
Input sensitivity: 40mV / 150Kohm
Overload and short-circuit protected
Supply voltage: 15V DC (8 to 18V DC possible) / 0.5A
Dimensions: 2.2 x 1.4"
