Futaba to JR, Buddy Box Cord

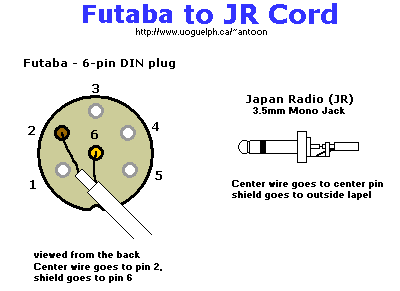

The JR buddy box cable is a thin coaxial type. The center pin goes from the center pin of the JR plug to pin 2 of the Futaba 6-pin DIN plug. The shield (DSC) goes from the Futaba pin 6 to the lapel connector of the JR plug. Easy as pie! Cable length should in general not exceed 15 feet.
