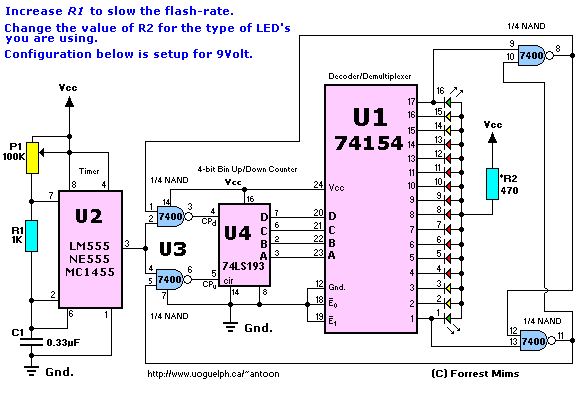

Back and Forth Flasher
by Forrest Mims III

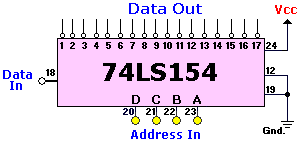

1-to-16 Demultiplexer - Selected output is low when Data IN is low.
If Data IN is high, then selected output is high also.
Each 4-bit address drives one output low. All others stay high.
Enable inputs (E1 & E2) must be low.
If one or both are high, all inputs go low.
Parts List:
U1 = SN74154 (demultiplexer) (may be difficult to get)
U2 = LM555 (timer)
U3 = SN74LS00
U4 = SN74LS190
P1 = 100K
R1 = 1K
R2 = 470-Ohm
C1 = 0.33uF(tantalum)
16 LED's, high brightnes or ultra-bright
Table 1 - Connection Scheme
Pos
|
IC |
Pin # |
La # |
Color |
Wir |
Wire |
1. |
74154 |
Pin 1 |
Led 1 |
Green |
Or |
Orange |
2. |
74154 |
Pin 2 |
Led 2 |
Yellow |
Whi |
White |
3. |
74154 |
Pin 3 |
Led 3 |
Yellow |
Blu |
Blue |
4. |
74154 |
Pin 4 |
Led 4 |
Red |
Blk |
Black |
5. |
74154 |
Pin 5 |
Led 5 |
Red |
Rw |
Red/White |
6. |
74154 |
Pin 6 |
Led 6 |
Red |
Gw |
Green/White |
7. |
74154 |
Pin 7 |
Led 7 |
Red |
Bw |
Blue/White |
8. |
74154 |
Pin 8 |
Led 8 |
Red |
Bw |
Black/White |
9. |
74154 |
Pin 9 |
Led 9 |
Red |
Or |
Orange/Red |
10. |
74154 |
Pin 10 |
Led 10 |
Red |
Br |
Blue/Red |
11. |
74154 |
Pin 11 |
Led 11 |
Red |
Bkr |
Black/Red |
12. |
74154 |
Pin 13 |
Led 12 |
Red |
Rb |
Red/Black |
13. |
74154 |
Pin 14 |
Led 13 |
Red |
Bb |
Blue/Black |
14. |
74154 |
Pin 15 |
Led 14 |
Yellow |
Gb |
Green/Black |
15. |
74154 |
Pin 16 |
Led 15 |
Yellow |
Pi |
Pinkk |
16. |
74154 |
Pin 17 |
Led 16 |
Green |
Pu |
Purple |
17. |
Gnd |
12/18/19 |
Common |
to everything |
Gnd everything |
Green |
18. |
Vcc+ |
24 and |
anodes |
5.5V to 7.5V |
Re 5 - 7.5 V |
Red |
19. |
n/a |
|
|
|
|
|
20. |
n/a |
|
|
|
|
|
21. |
n/a |
|
|
|
|
|
22. |
n/a |
|
|
|
|
|
23. |
n/a |
|
|
|
|
|
24. |
n/a |
|
|
|
|
|
A Couple of Final Notes:
Click here [LM555] for more information and data on the 555 timer/oscillator IC.
Keep wires as short as possible since too long wires coming from the 74154 to the led's will give trouble getting
them 'running' properly. The 74154 may be difficult to get these days and may be pricy.
I had this circuit installed in the nose of my R/C helicopter before I sold it and the circuit was working good.
This circuit is for those electronics persons with experience only. In either case, it is definately a good learning
experience. Have fun!
Copyright and Credits:
This circuit diagram is copyright Forrest Mims III, and is published in his
publication: "Engineer's Notebook", listed page 61.
Posted with permission.
Back to Gadgets' Menu page
Copyright 1993 © Tony van Roon
