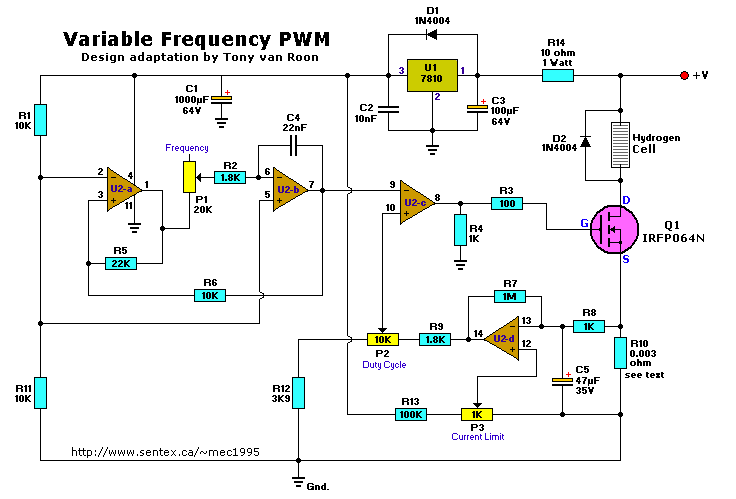

PWM


Parts List:
R1,R6,R11 = 10K C1 = 1000uF, 64V R2,R9 = 1K8 C2 = 10nF, polyester R3 = 100 ohm C3 = 100uF, 64V R4,R8 = 1K C4 = 22nF R5 = 22K C5 = 47uF, 35V R7 = 1M *R10 = 0.003 ohm D1,D2 = 1N4004 R12 = 3K9 U1 = LM7810, volt regulator R13 = 100K U2 = LM324, Op-amp R14 = 10 ohm/1 Watt Q1 = IRFP064, IRFZ44, etc. MOSFet P1 = 20K (Frequency) P2 = 10K (Duty C.) P3 = 1K (Current L.) *see text Notes: Resistor R10 is there more for safety purposes than anything else and can be omitted if you wish. It protects Q1 in case of a short circuit.
