Lead Acid Battery Charger


Parts List:
R1 = 0.56 Ohm, 5W, WW     C1 = 1000uF/63V           Q1 = BC140
R2 = 470 Ohm              C2 = 220nF                Q2 = LM317, Adj. Volt Reg.
R3 = 120 Ohm              C3 = 220nF                      (On coolrib!)
R4 = 100 Ohm
P1 = 220 Ohm

Description:

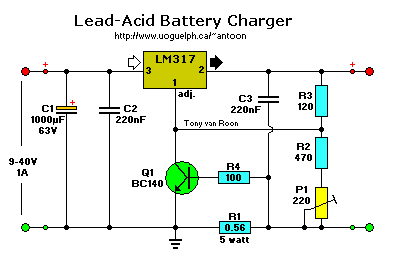

The above pictured schematic diagram is just a standard constant current model with a added current limiter, consisting of Q1, R1, and R4. The moment too much current is flowing biases Q1 and drops the output voltage.

The output voltage is: 1.2 x (P1+R2+R3)/R3 volt. Current limiting kicks in when the current is about 0.6/R1 amp.
For a 6-volt battery which requires fast-charging, the charge voltage is 3 x 2.45 = 7.35 V. (3 cells at 2.45v per cell). So the total value for R2 + P1 is then about 585 ohm. For a 12 V battery the value for R2 + P1 is then about 1290 ohm.

For this powersupply to work efficiently, the input voltage has to be minimum 3V higher than the output voltage.

P1 is a standard trimmer potentiometer of sufficient watt for your application.

The LM317 must be cooled on a sufficient coolrib.

Q1 (BC140) can be replaced with a NTE128 or the older ECG128 (same company).

Except as a charger, this circuit can also be used as a regular power supply.

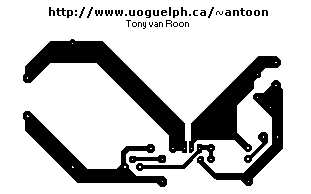

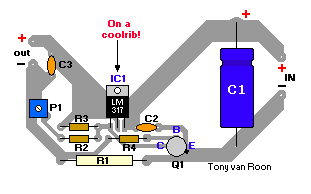

Printed Circuit Board  Parts Placement Diagram
